Forged steel shackles, mooring chain, swivels, master links and connection plates for cage mooring and marine applications. Hot-dip galvanised, 2–150 tonne WLL range, supplied through engineering selection.
ASAKUA supplies all hardware components required for fish cage mooring systems through engineering selection. The portfolio covers forged steel shackles, LLZ Grade 6 long-link mooring chain, reclaimed anchor chain, swivels, master links and connection plates. All components are hot-dip galvanised. Mooring hardware is not ASAKUA-manufactured; components are selected and sourced according to project requirements.
Project-based combined supply of shackle, chain, swivel, master link and connection plate for complete cage mooring installation. ASAKUA can supply mooring hardware alongside rope and net selection as a single source.
Individual supply of mooring hardware elements damaged or due for periodic replacement in field operations. Stock availability and lead time communicated on request.
Supply of large-diameter shackles (up to 150t MBL), chain and connection plates for offshore mooring projects requiring WLL above 25 tonnes. Gunnebo/Crosby-grade material applicable in NS 9415-compliant projects.

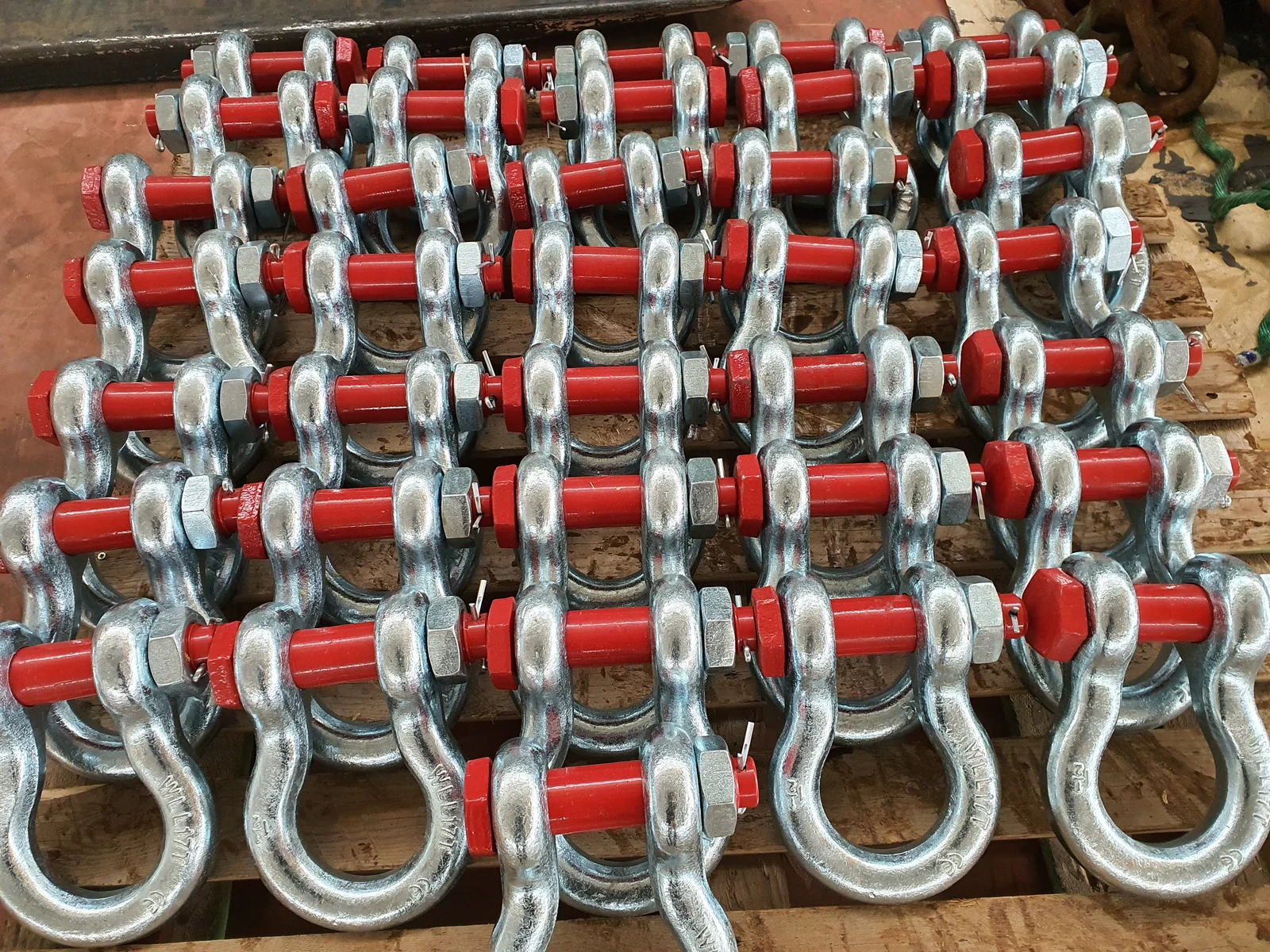

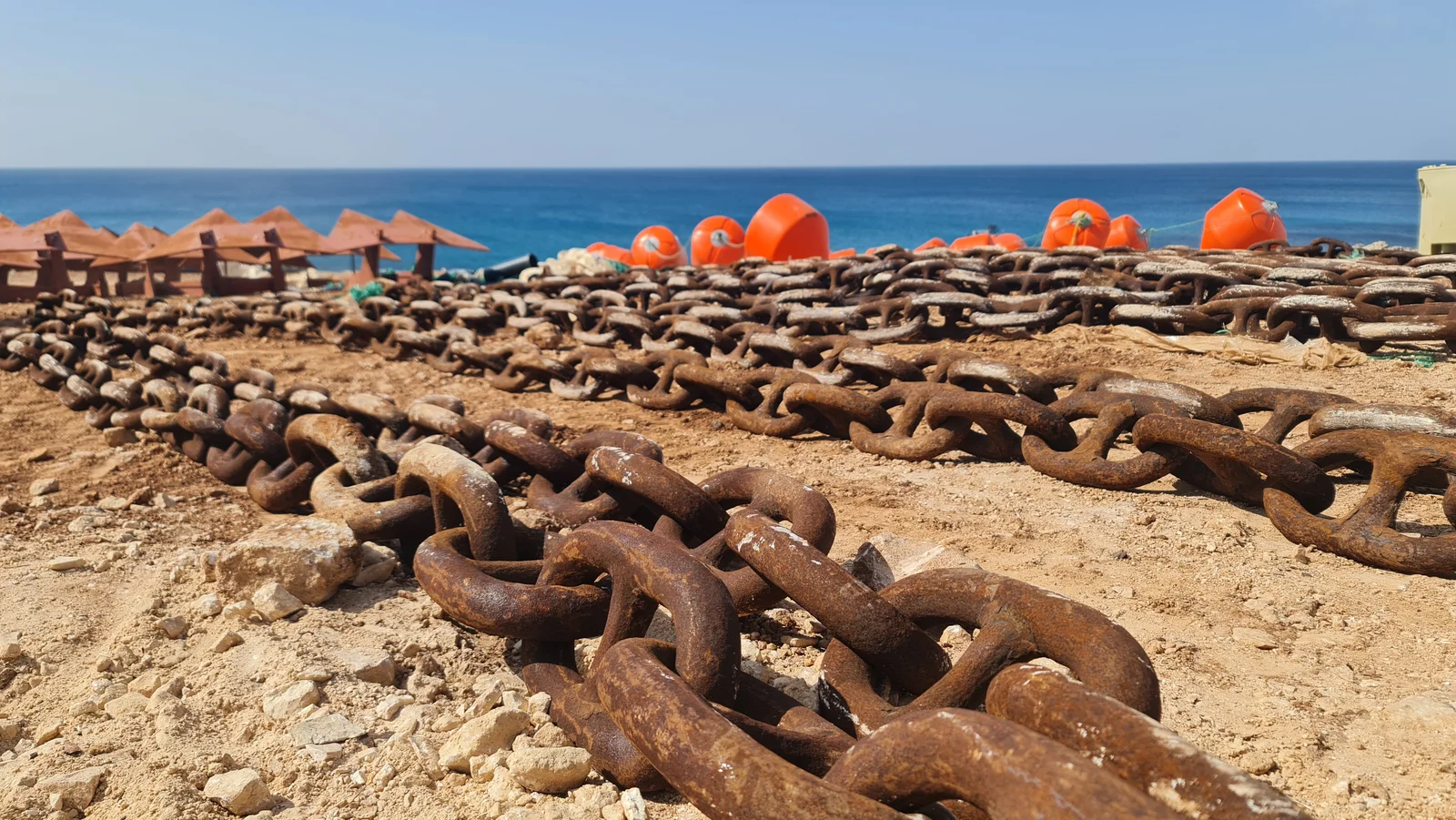

Shackles are forged from high tensile steel, quenched and tempered (Grade 6), hot-dip galvanised; WLL spans 2–150 tonnes (Dee, Bow and Mooring types). LLZ Grade 6 long-link mooring chain is available in 13–32mm diameters, heat-treated and HDG-coated. Reclaimed anchor chains are sourceable in various diameters and lengths. Swivels are available in eye/eye and eye/jaw types, 6–38mm. Master links span Ø22–Ø40 with 40–110 tonne MBL. Connection plates (TXCP type) cover 50–150 tonne MBL range.
